Double Color Artificial Grass Curly Yarn Extrusion Line

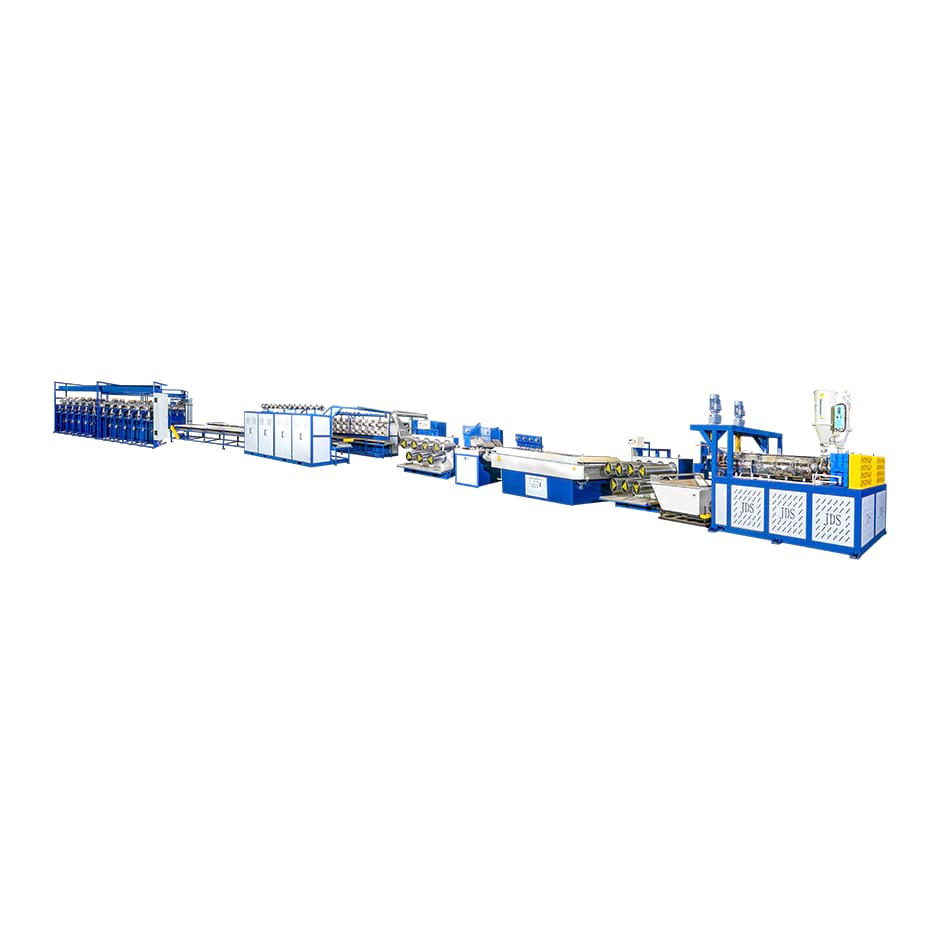

This Double color artificial grass curly yarn extrusion line is composed with extruders, roller take-up units, drawing tanks, curly unit, cooling and winding unit as per demand.

It designed to produce artificial grass curly yarn with raw materials such as Polypropylene(PP), Polyethylene(PE).
This machine is easy operate, energy saving and stable quality.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Technical Parameters

MODEL	C65x33-16	C70x33-24	C80x33-24	C90x33-32
Main material	PP, PE.	PP, PE	PP, PE	PP,PE
Double screw production capacity(kg/h)	30-80	50-100	85-150	100-200
Screw diameter(mm)	Φ65	Φ70	Φ80	Φ90
L/D ratio	33:1	33:1	33:1	33:1
Spindles qty(Spindles)	16	24	24	32

Description Of JDS Artificial Grass Extrusion Line

Core Technology & Working Principle

The extrusion line employs a dual-screw, dual-die configuration specifically engineered for processing polypropylene (PP) and polyethylene (PE) raw materials—polymers widely recognized for their durability and weather resistance in synthetic turf applications. The key workflow involves:

Melting & Mixing: High-quality resin pellets, blended with color masterbatches, are melted and homogenized under precise temperature control.

Dual-Color Extrusion: A specialized co-extrusion system with high-precision dies enables simultaneous extrusion of two colored polymers, ensuring uniform color distribution throughout the yarn structure.

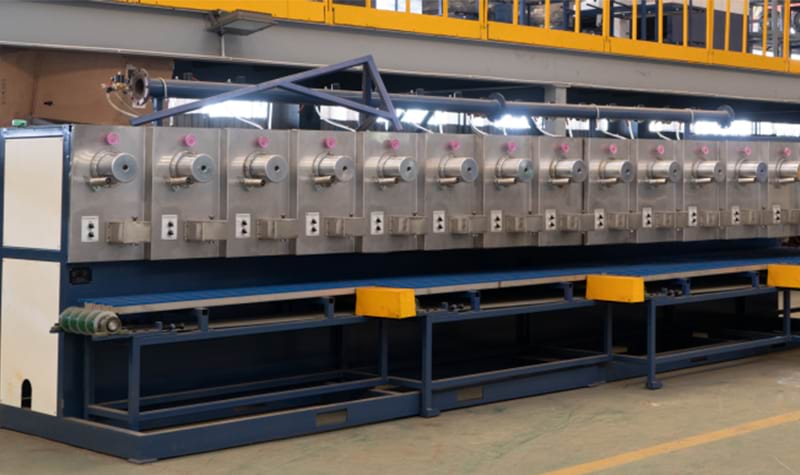

Curling Formation: Through a proprietary high-speed thermal deformation nozzle and air heating system, filaments undergo controlled texturizing to develop stable curly patterns that mimic natural grass morphology.

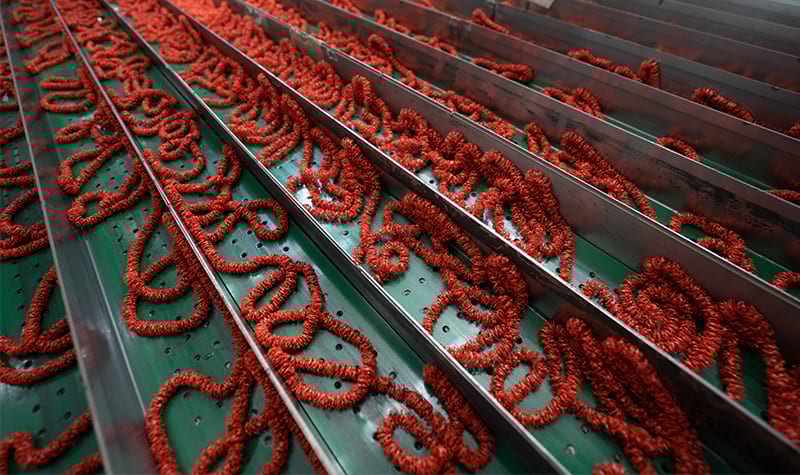

Cooling & Winding: Equipped with a single-head conveyor cooling system and automatic tension-controlled winding, the line ensures consistent yarn quality from extrusion to finished bobbin.

Key Advantages

One-Step Production: Eliminates intermediate processing steps by integrating melting, extrusion, texturizing, and winding into a continuous workflow, reducing production time by up to 30% compared to conventional systems.

Precision Control: Features metering pump pressure tracking systems and PLC-based inverter controls for main motors, ensuring stable yarn dimensions and uniform crimping even at high production speeds.

Enhanced Durability: Double-roll heating control in the texturizing section reduces yarn moisture content, significantly improving crimp stability and resistance to UV degradation and wear.

Flexibility: Adaptable to various raw materials (PP/PE) and customizable for different crimp patterns, pile heights (7–18mm), and color combinations to meet specific turf requirements.

Technical Specifications

Parameter	Details
Screw Configuration	Dual-screw with 30:1 L/D ratio
Die System	Multi-hole flow-equalizing precision die
Production Capacity	20–100 kg/h (depending on model)
Yarn Denier Range	1600–5000 Dtex
Heating Control Accuracy	±1℃ during high-speed operation
Certification	Compliant with CE and ISO 9001 standards

Applications

The dual-color curly yarns produced by this line are ideal for:

Sports surfaces (football fields, golf putting greens, tennis courts) requiring realistic ball roll and player safety

Landscaping solutions where natural aesthetics and durability are paramount

Indoor leisure areas demanding low maintenance and long service life

This extrusion line represents a synergy of automation and material science, enabling manufacturers to produce synthetic turf yarns that balance visual appeal, mechanical performance, and environmental sustainability. By reducing energy consumption through inverter-controlled motors and ensuring material efficiency via precision extrusion, it sets a new standard for eco-friendly production in the synthetic turf industry.
