| Quantity: | |
|---|---|
| Maximum winding speed: | 350m/min |
| Maximum diameter of drum: | ɸ320mm |
| Bobbin size: (outer diameter*length) | ɸ80×285mm |
| motor model: | YS7124 |
| Motor Power: | 370W |

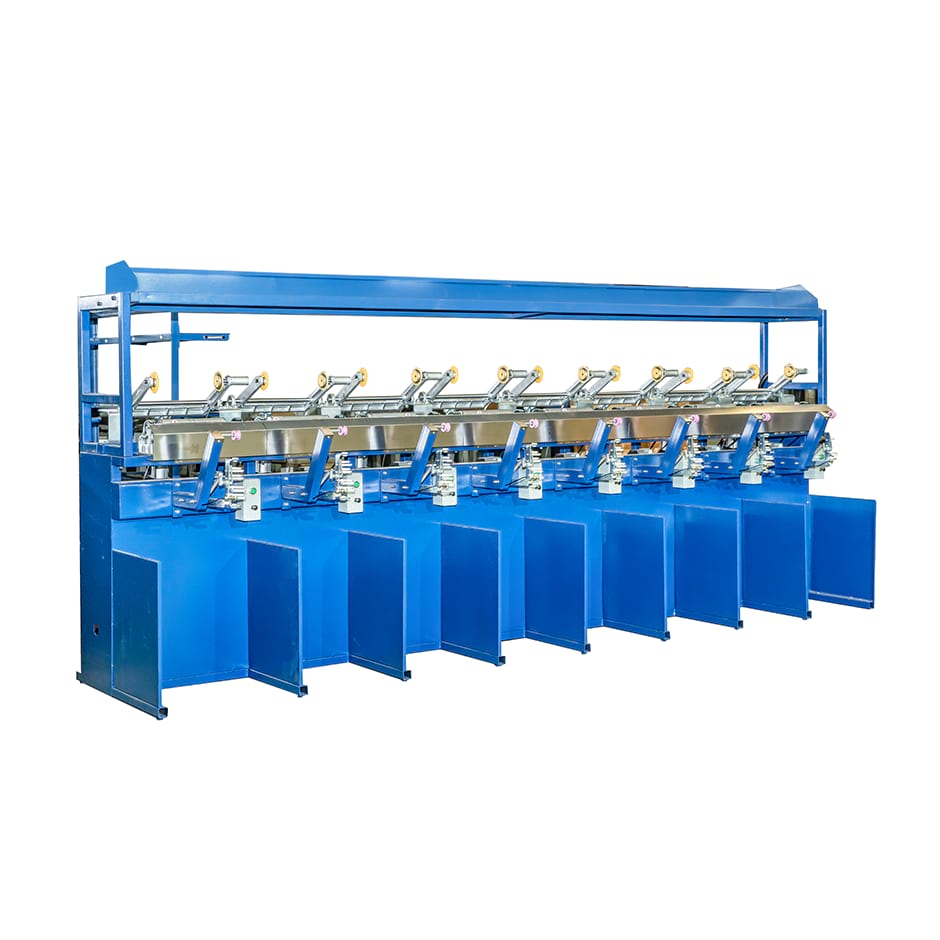

The Grass Yarn Rewinding Machine by JDS Textile Machinery Co., Ltd. is a high-performance equipment designed to streamline the process of winding grass yarn into uniform cylinders. As a leading manufacturer in textile machinery, JDS Textile Machinery integrates advanced engineering to meet the rigorous demands of modern artificial grass production lines.
This machine stands out for its precision and efficiency, boasting a maximum winding speed of 350m/min—a key metric that ensures rapid processing without compromising yarn quality. It accommodates a maximum drum diameter of ɸ320mm and a standard bobbin size (outer diameter*length) of ɸ80×285mm, with flexibility to adjust to custom dimensions, making it suitable for diverse production needs.
Powered by a YS7124 motor with 370W motor power, the machine balances energy efficiency with consistent performance, making it an ideal choice for small to large-scale artificial grass manufacturing facilities.

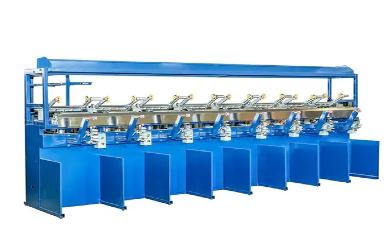

The machine is available in configurations of 4 spindles, 6 spindles, or 8 spindles, allowing manufacturers to scale production based on their output requirements. This modular design ensures optimal use of floor space while maximizing productivity.
Each spindle is equipped with its own dedicated motor, enabling individual control over winding operations. This feature is critical for reducing downtime—if one spindle requires maintenance, others can continue running, ensuring uninterrupted production.

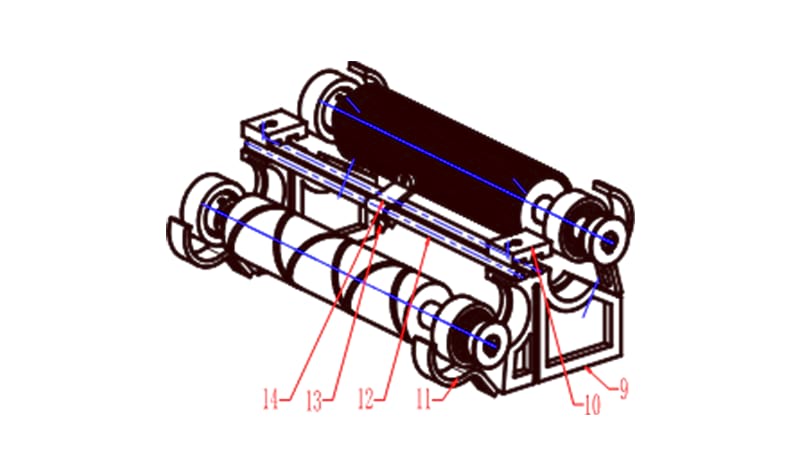

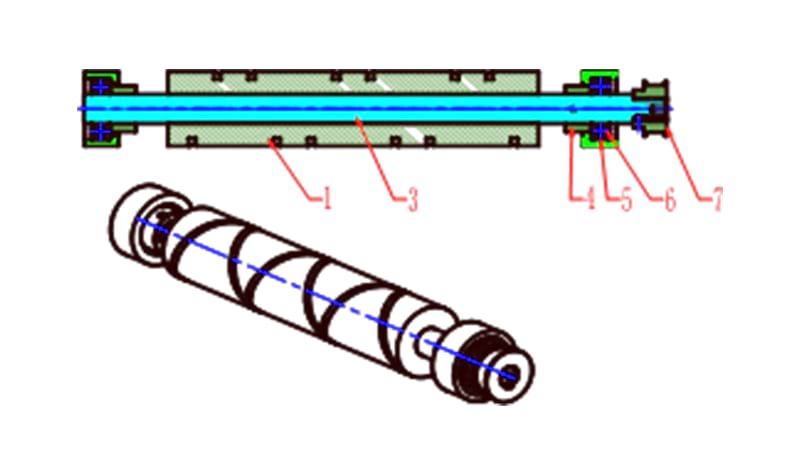

A slider group embedded in the grooved roller’s guide groove enables reciprocating motion, ensuring grass yarn is evenly wound back and forth across the bobbin. The grooved roller, crafted from high-quality cast iron with a stepped groove structure, guarantees durability and consistent performance over extended use.

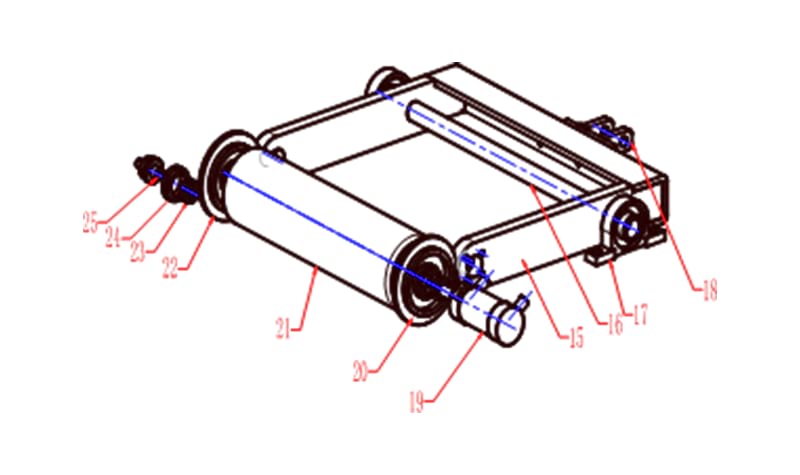

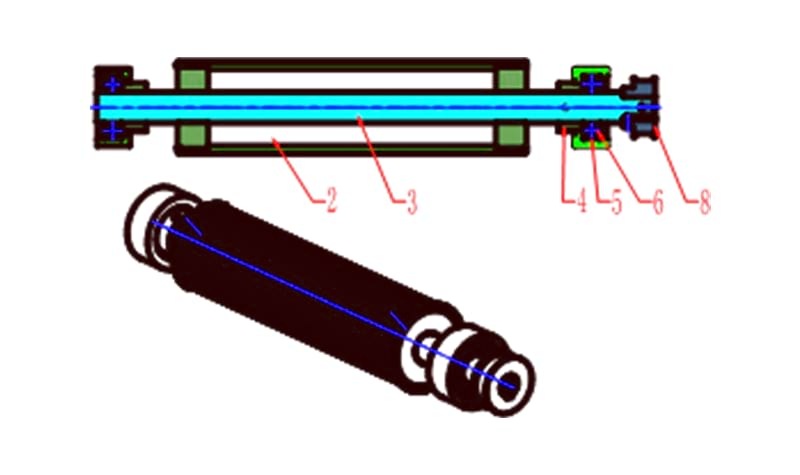

The transmission system uses synchronous belts and pulleys (24-tooth motor pulley, 27-tooth grooved roller pulley, 25-tooth friction roller pulley) to deliver smooth power transfer. A built-in frequency converter allows precise speed adjustment, adapting to different yarn types and winding requirements.

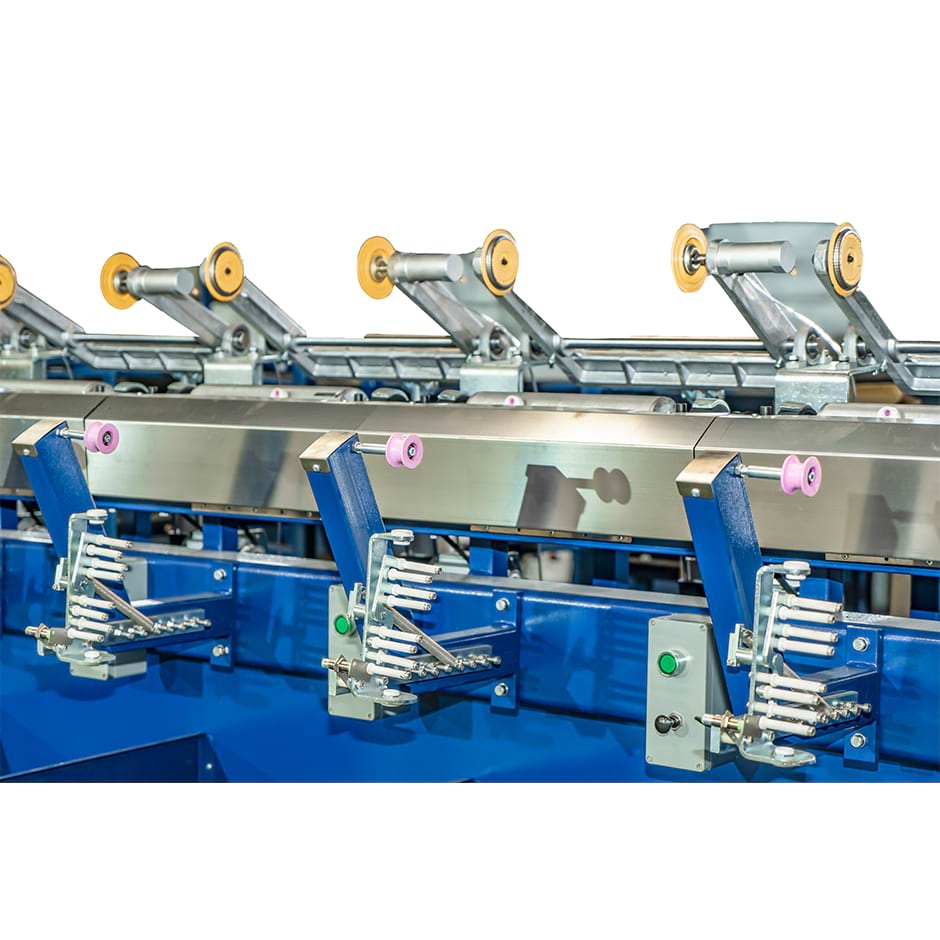

Equipped with a sophisticated tension control system—including tension aluminum base, tension plates, springs, and porcelain parts—the machine maintains stable yarn tension during winding. When tension fluctuates, the system automatically adjusts via spring compression, preventing yarn breakage and ensuring uniform cylinder formation.

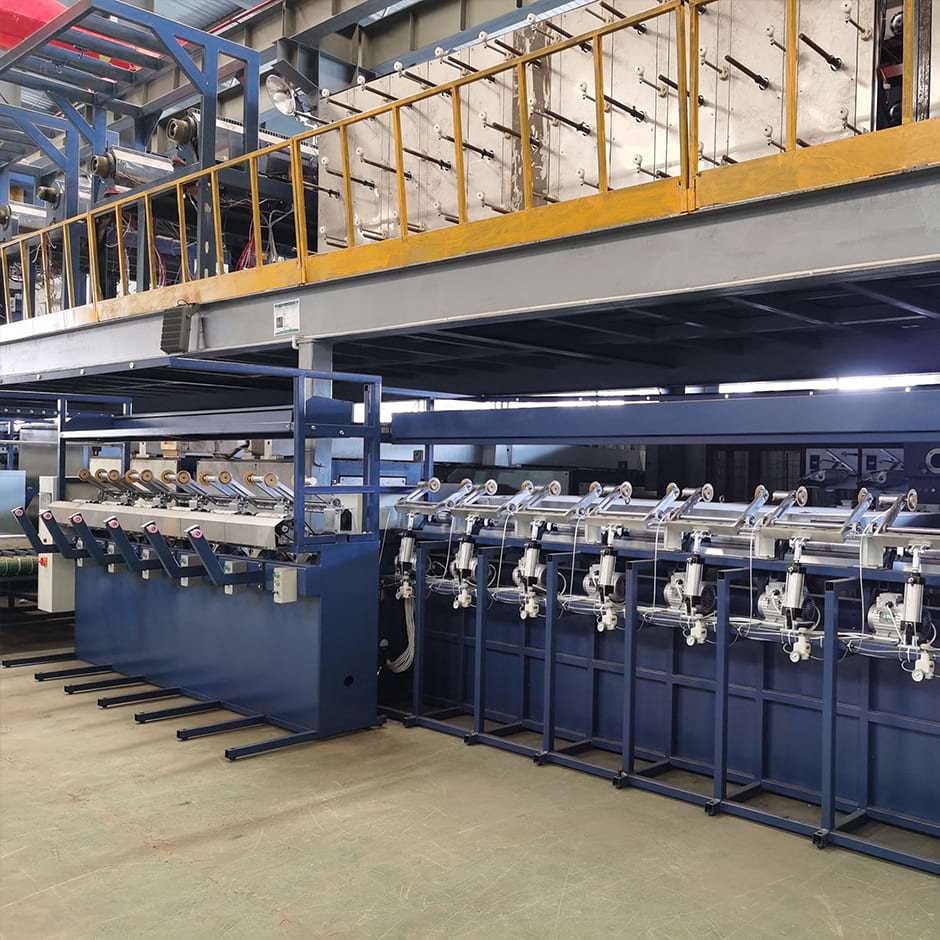

The Grass Yarn Rewinding Machine is a core component in artificial grass production lines, supporting the processing of various grass yarn materials such as PP (polypropylene) and PE (polyethylene). Its applications include:
Artificial Turf Manufacturing: Winding grass yarn into standardized bobbins for subsequent twisting, extrusion, or tufting processes, used in sports fields, residential lawns, and commercial landscapes.
Yarn Processing Facilities: Preparing yarn for storage or transportation, ensuring neat, compact bobbins that reduce handling damage and storage space.
Custom Yarn Production: Adapting to non-standard bobbin sizes (e.g., customer-specific lengths of 285-290mm and inner diameters of 72-75mm) to meet unique project requirements.
A: Yes, the Grass Yarn Rewinding Machine is equipped with a yarn break sensor to detect and respond to yarn breakages, minimizing material waste and production interruptions.
A: Absolutely. The machine is designed to adjust to customer-specific dimensions, including lengths of 285-290mm and inner diameters of 72-75mm, ensuring compatibility with diverse production needs.
A: Installation space depends on the spindle configuration (4, 6, or 8 spindles). For accurate measurements, we recommend customers provide facility drawings, and our technical team will calculate the exact area needed.
A: The minimum power rating is 0.37kW x 6 per unit (based on a 6-spindle configuration), ensuring energy efficiency while maintaining high performance.
General Packaging Principles
1.Robust Protection – Prevent damage from shocks, vibrations, moisture, and handling.
2.Customized Design – Fit machinery dimensions/weight (avoid over/under-sizing).
3.Cushioning–Foam, bubble wrap, or airbags for fragile components.
4.Solid Blocks – To immobilize machinery inside crates.
Advance Payment (T/T in Advance),Full Advance (100%);Partial Advance (30-50%)
Letter of Credit (L/C)
Open Account (O/A)
| Maximum winding speed: | 350m/min |
| Maximum diameter of drum: | ɸ320mm |
| Bobbin size: (outer diameter*length) | ɸ80×285mm |
| motor model: | YS7124 |
| Motor Power: | 370W |
The Grass Yarn Rewinding Machine by JDS Textile Machinery Co., Ltd. is a high-performance equipment designed to streamline the process of winding grass yarn into uniform cylinders. As a leading manufacturer in textile machinery, JDS Textile Machinery integrates advanced engineering to meet the rigorous demands of modern artificial grass production lines.
This machine stands out for its precision and efficiency, boasting a maximum winding speed of 350m/min—a key metric that ensures rapid processing without compromising yarn quality. It accommodates a maximum drum diameter of ɸ320mm and a standard bobbin size (outer diameter*length) of ɸ80×285mm, with flexibility to adjust to custom dimensions, making it suitable for diverse production needs.
Powered by a YS7124 motor with 370W motor power, the machine balances energy efficiency with consistent performance, making it an ideal choice for small to large-scale artificial grass manufacturing facilities.
The machine is available in configurations of 4 spindles, 6 spindles, or 8 spindles, allowing manufacturers to scale production based on their output requirements. This modular design ensures optimal use of floor space while maximizing productivity.
Each spindle is equipped with its own dedicated motor, enabling individual control over winding operations. This feature is critical for reducing downtime—if one spindle requires maintenance, others can continue running, ensuring uninterrupted production.
A slider group embedded in the grooved roller’s guide groove enables reciprocating motion, ensuring grass yarn is evenly wound back and forth across the bobbin. The grooved roller, crafted from high-quality cast iron with a stepped groove structure, guarantees durability and consistent performance over extended use.
The transmission system uses synchronous belts and pulleys (24-tooth motor pulley, 27-tooth grooved roller pulley, 25-tooth friction roller pulley) to deliver smooth power transfer. A built-in frequency converter allows precise speed adjustment, adapting to different yarn types and winding requirements.
Equipped with a sophisticated tension control system—including tension aluminum base, tension plates, springs, and porcelain parts—the machine maintains stable yarn tension during winding. When tension fluctuates, the system automatically adjusts via spring compression, preventing yarn breakage and ensuring uniform cylinder formation.
The Grass Yarn Rewinding Machine is a core component in artificial grass production lines, supporting the processing of various grass yarn materials such as PP (polypropylene) and PE (polyethylene). Its applications include:
Artificial Turf Manufacturing: Winding grass yarn into standardized bobbins for subsequent twisting, extrusion, or tufting processes, used in sports fields, residential lawns, and commercial landscapes.
Yarn Processing Facilities: Preparing yarn for storage or transportation, ensuring neat, compact bobbins that reduce handling damage and storage space.
Custom Yarn Production: Adapting to non-standard bobbin sizes (e.g., customer-specific lengths of 285-290mm and inner diameters of 72-75mm) to meet unique project requirements.
A: Yes, the Grass Yarn Rewinding Machine is equipped with a yarn break sensor to detect and respond to yarn breakages, minimizing material waste and production interruptions.
A: Absolutely. The machine is designed to adjust to customer-specific dimensions, including lengths of 285-290mm and inner diameters of 72-75mm, ensuring compatibility with diverse production needs.
A: Installation space depends on the spindle configuration (4, 6, or 8 spindles). For accurate measurements, we recommend customers provide facility drawings, and our technical team will calculate the exact area needed.
A: The minimum power rating is 0.37kW x 6 per unit (based on a 6-spindle configuration), ensuring energy efficiency while maintaining high performance.
General Packaging Principles
1.Robust Protection – Prevent damage from shocks, vibrations, moisture, and handling.
2.Customized Design – Fit machinery dimensions/weight (avoid over/under-sizing).
3.Cushioning–Foam, bubble wrap, or airbags for fragile components.
4.Solid Blocks – To immobilize machinery inside crates.
Advance Payment (T/T in Advance),Full Advance (100%);Partial Advance (30-50%)
Letter of Credit (L/C)
Open Account (O/A)
