Are your operators constantly battling messy bobbins? Does the synthetic yarn come off the line looking loose, unstable, and squishy? When a faulty rewinding process plagues your factory floor, it does more than just create an ugly package. It actively bleeds your production efficiency. These seemingly minor flaws multiply exponentially as the material moves down your manufacturing line. The result? Frustrating tangles, massive material waste, and inferior final turf products.
In this comprehensive engineering guide, we will break down the mechanics behind uneven bobbins. We will eliminate the root causes of yarn breakage and address the silent killer of turf quality: tension drift. Let's get your production line running the way it was designed to.
Uneven Bobbins: "Squishy" or disorganized packages typically result from incorrect traverse speeds or spindle alignment issues. Calibrating the traverse ratio is the foundational step for stable turf yarn bobbin winding.
Yarn Breakage: Frequent snapping during PE or PP processing usually points to micro-snags on worn ceramic guides, excessive winding speeds, or environmental static build-up.
Tension Drift: Inconsistent tension causes artificial grass blades to stretch and permanently deform. Maintaining clean tensioners and utilizing modern digital compensation systems prevents this structural degradation.
Machine Upgrades: If persistent winding issues continue despite rigorous maintenance, you are likely fighting mechanical fatigue. Upgrading to newer equipment significantly reduces scrap rates and protects your operational bottom line.

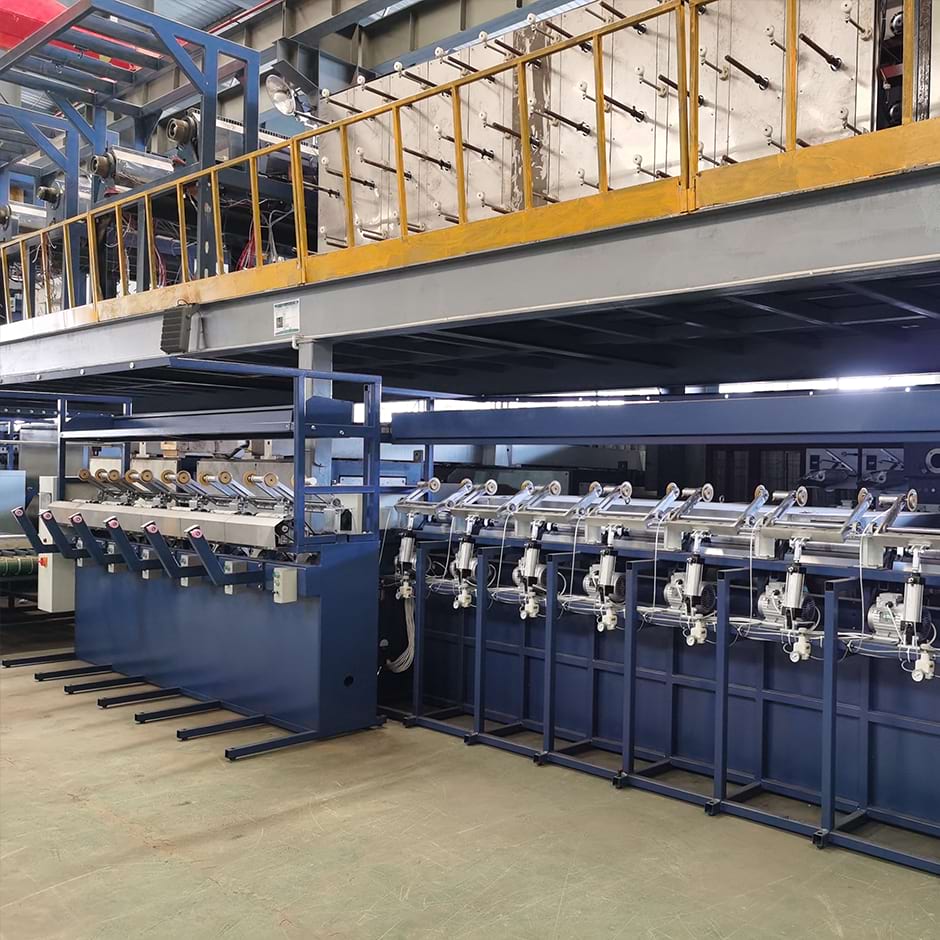

Before diving into specific mechanical failures, we need to look at the operational context of your equipment. The rewinding phase is not merely a packaging step. Rather, it is a critical quality control checkpoint. It dictates the physical integrity of the artificial turf.
If you look at the current global market, there is an aggressive shift toward FIFA-certified sports arenas and ultra-premium landscaping. Buyers are demanding high-denier, highly resilient synthetic turf—often pushing past the 10,000 to 12,000 Dtex range. Consequently, the manufacturing tolerance for rewinding defects has plummeted to near zero. Industry experts and polymer engineers now recognize that precision winding is a critical determinant of the turf's final biomechanical performance. You simply cannot produce elite turf with sub-par bobbins.
During the extrusion process, synthetic filaments are created, cooled, and stretched. The rewinding equipment then collects these filaments. If this collection process is flawed, the resulting defects will cause severe disruptions downstream. Uniform bobbins ensure smooth unwinding during the subsequent stages on the grass yarn twisting machine and tufting equipment. A well-wound package maintains the fiber's structural memory. This guarantees the artificial grass blades will stand upright and exhibit the desired resilience after installation.
Not all synthetic fibers behave identically under mechanical stress. A one-size-fits-all approach will inevitably lead to material failure. Operators must adjust machine parameters based on the specific polymer running on the line.
Specifically, Polyethylene (PE) is favored for its softness and natural feel. This makes it the standard for landscape and sports turf. However, this softness means it possesses high elasticity. Processing PE requires delicate handling and lower tension parameters. If the tension is too high, the filament stretches beyond its elastic limit. You end up with a thinner denier and compromised durability. In contrast, Polypropylene (PP) is stiffer and more abrasive. It is generally used for the thatch layer or putting greens. Working with PP requires distinct, slightly higher tension settings to prevent the rigid material from unspooling. Because PP is more brittle than PE, sharp angles or sudden tension spikes will easily snap the filament.
Moving from material properties to mechanical realities, one of the most frequent complaints from floor operators is the production of bobbins that feel "squishy." Operators often describe these defective packages as feeling like a soft sponge rather than a solid, dense cylinder. This defect directly leads to strands sloughing off and tangling during the twisting phase.
The mechanics of a poorly built package usually come down to incorrect geometry during the winding process. A loose bobbin lacks the necessary density to hold its shape. This flaw is primarily caused by an incorrect traverse stroke—the side-to-side movement that guides the fiber onto the tube.
If the traverse speed synchronizes perfectly with the spindle rotation (forming a whole-number ratio), it creates a "ribboning" or "patterning" effect. Instead of crossing over, the material stacks directly on top of the previous layer. This lack of crossover binding causes the layers to become highly unstable. As a result, you get a loose structure that easily collapses when handled by technicians.
To restore structural integrity to your inventory, execute these mechanical adjustments on the factory floor:
Adjust the Traverse Ratio: The traverse speed must be calibrated to ensure the strand crosses over itself at an optimal angle. Adjust the gearing or the digital servo controls so that the traverse stroke breaks the harmonic ratio with the spindle. This guarantees a staggered lay pattern, locking the layers firmly together.
Recalibrate the Winding Angle: The angle at which the material hits the tube determines package density. For heavier denier products (like a 12,000D sports yarn), a slightly wider winding angle is often required to maintain stability. Consult your equipment’s manual to fine-tune the traverse guide distance.
Secure the Core Tube: A loose package often stems from the core itself slipping. Ensure the empty tube is securely clamped. If your system utilizes pneumatic expanding mandrels, check the air pressure gauges. Confirm they are delivering sufficient outward force (usually around 0.5-0.6 MPa) to grip the core firmly during high-speed rotation.
While squishy packages compromise structural integrity, frequent snapping halts production entirely. Imagine an operator mid-shift, forced to hit the emergency stop because a brittle PP filament just snapped for the third time in an hour. They have to hunt for the broken end, tie a bulky knot, and reset the system. This wastes precious minutes and introduces weak points into the final turf backing.
When fibers snap repeatedly, the issue is rarely a bad batch of raw material. It is almost always a mechanical friction or operational speed issue.
The most common culprit is mechanical wear—specifically, grooved or cracked ceramic guides. As synthetic strands travel over ceramic eyelets at high speeds, the abrasive nature of the polymer slowly cuts microscopic grooves into the guide. These hidden grooves develop razor-sharp edges that catch individual filaments, fraying or cutting them entirely. Furthermore, operational errors play a massive role. Winding speeds may simply be set too high for the specific denier thickness. This exponentially increases dynamic friction and sudden tension spikes.
Implementing a proactive troubleshooting protocol can eliminate the vast majority of these frustrating breakage incidents. Start by mandating the routine inspection of guides. Here is a practical floor tip: have operators run a piece of fine nylon mesh (or pantyhose) through all ceramic eyelets weekly. If the fabric snags even slightly, the ceramic is grooved and must be replaced immediately. Never attempt to sand or polish worn ceramic components.
Next, optimize the speed-to-strength ratio. Flexible polymers can generally tolerate higher speeds (e.g., 300-400 m/min). However, stiffer, brittle polymers should run at a slightly reduced RPM to accommodate their lack of elasticity. Finally, eliminate static build-up. Synthetic fibers generate significant static electricity during friction, causing them to balloon, cling to metal frames, and snap. Ensure anti-static bars are functioning correctly and maintain a relative factory humidity of around 50-60%.
Beyond obvious breakages, a more insidious issue plagues many factory floors: tension drift. Tension is the invisible force that dictates the success or failure of artificial grass manufacturing. Poor yarn tension control is arguably the most destructive fault. Its effects are often completely invisible until the turf is fully manufactured, installed, and subjected to foot traffic.
"Tension drift" refers to the mechanical phenomenon where the pulling force slowly increases or decreases as the bobbin fills up. As the package grows in diameter—say, from an empty 75mm core to a full 300mm package—the geometry of the threading path and the leverage against the spindle naturally change.
If the force drifts upward, creating over-tensioning, the synthetic strand stretches plastically. This permanent stretching alters the molecular structure of the polymer, causing it to lose its "memory." When installed on a sports field, over-tensioned blades will lie flat and fail to spring back after being stepped on. Conversely, if the force drifts downward, it results in the unstable, spongy bobbins discussed earlier.
To maintain absolute consistency from the empty tube to the full package, specific technical interventions are required. The most basic yet frequently overlooked fix is cleaning the tension discs. Wax, spin finishes, and polymer dust accumulate rapidly on mechanical discs, creating highly erratic friction coefficients. Clean all contact devices weekly with industrial isopropyl alcohol.
Additionally, modern facilities must rely on active compensation systems. Advanced equipment utilizes sensors to detect the growing diameter and automatically reduce the applied braking force. Ensure these optical or load-cell sensors are perfectly calibrated and free of dust obstruction. Do not rely on an operator's "feel." Establish strict, documented parameters (measured in grams per denier) for every specific weight, and use a handheld tensiometer to verify the digital readout against the actual running force.
Transitioning from reactive troubleshooting to proactive prevention is the hallmark of a mature manufacturing facility. Establishing rigorous maintenance protocols is the most reliable method to stabilize production and reduce scrap rates.
Standard Operating Procedures (SOPs) remove the guesswork from factory upkeep. When dealing with polymer extrusion, environmental factors like dust, shedding, and static electricity accumulate rapidly. This directly impacts mechanical precision.
On a daily basis, operators must focus on cleanliness. As material travels through the guides at high speeds, micro-frictions cause microscopic polymer dust to shave off. This dust combines with spinning oils to form a sticky residue on gates and eyelets. Operators should use regulated, low-pressure compressed air to blow out lint from the traverse mechanisms and sensors at the end of every shift. Listen to the motors during the run; abnormal whining often precedes a bearing failure.
Weekly maintenance requires deeper mechanical intervention. Technicians should systematically lubricate all moving parts, particularly the traverse cams and linear guide rails. Over-lubrication must be strictly avoided, as excess oil can splatter onto the fibers, ruining adhesion properties during the turf backing process. Furthermore, verify the calibration of the spindle chucks. Worn chucks fail to grip the empty tubes securely, leading to micro-slippage that fundamentally disrupts the winding angle.
Maintenance Task | Frequency | Component Target | Expected Operational Outcome |
|---|---|---|---|
Pneumatic Blowdown | Daily (End of Shift) | Tension discs, guides, traverse cams | Prevents polymer dust buildup and erratic tension spikes. |
Sensory Diagnostics | Daily (During Run) | Spindle motors, traverse gearboxes | Identifies abnormal vibrations or grinding noises before total failure. |
Surface Cleaning | Bi-Weekly | Ceramic eyelets, gates | Removes wax/oil residue to maintain a consistent friction coefficient. |
Precision Lubrication | Weekly | Linear guides, traverse mechanisms | Ensures smooth traverse strokes, preventing "ribboning" effects. |
Belt Tension Check | Weekly | Main drive belts, spindle belts | Maintains accurate RPM synchronization between spindle and traverse. |
Despite rigorous maintenance and extensive operator training, all industrial machinery eventually reaches the end of its optimal lifecycle. Mechanical wear compounds over years of continuous operation. Legacy systems often lack the digital infrastructure required to meet modern quality tolerances. You must objectively evaluate whether your persistent issues are solvable calibration errors, or indicators of systemic equipment obsolescence.
The hidden costs of operating outdated machinery often exceed the capital expenditure required for an upgrade. Calculate the true cost of downtime. If operators stop the line multiple times per shift to manually adjust speeds, untangle messes, or replace snapped strands, the cumulative loss in production volume is staggering. High-denier polymers are costly raw materials. When legacy hardware produces over-tensioned packages, that material becomes unusable scrap.
If empirical data suggests an upgrade is necessary, investing in state-of-the-art technology is crucial. You want to look for machinery built for modern extrusion demands. For instance, high-performance systems typically offer winding speeds up to 250-400 m/min and can effortlessly handle a wide denier range (from 2,000D up to 15,000D).
The most critical feature to demand is automated, closed-loop tension management. Advanced machines utilize programmable logic controllers (PLCs) paired with active electronic compensation systems. These systems continuously monitor the force via load cells and automatically adjust in milliseconds, entirely eliminating drift. Upgrading to a modern artificial grass yarn rewinding machine with independent servo-driven traverse systems allows operators to input exact winding angles into a touchscreen interface to execute the perfect ratio.
Stop letting legacy equipment and poor calibration dictate your scrap rates. Uneven bobbins, frequent breakage, and tension drift are significant hurdles, but they are entirely solvable. By understanding the mechanical causes behind squishy packages, proactively replacing worn ceramic guides, and enforcing rigorous control parameters, you can drastically reduce defect rates. Remember, the quality, resilience, and longevity of the final turf installation always begin at the rewinding stage.
If you are constantly fighting machine fatigue, it is time to evaluate solutions built for modern extrusion lines. Explore high-performance winding and twisting systems at JDSTEX to stabilize your production, package your inventory flawlessly, and protect your operational bottom line.
The ideal parameters differ significantly due to the distinct molecular structures of the two polymers. Polyethylene (PE) is softer and more elastic. During processing, the force must be set lower and managed with extreme care to prevent plastic stretching, which destroys the fiber's "memory." Conversely, Polypropylene (PP) is highly crystalline, stiffer, and more brittle. It requires a slightly higher, highly consistent profile to prevent the package from becoming loose, while carefully avoiding sudden spikes that could snap its rigid structure. Always consult your material manufacturer's technical data sheet for precise centi-Newton (cN) targets.
Slippage is a mechanical failure that disrupts the synchronous relationship between the spindle RPM and the traverse speed. This issue is predominantly caused by a failure in the spindle chuck mechanism. In machines utilizing mechanical expanding chucks, internal springs may be worn down due to metal fatigue. If your system uses pneumatic mandrels, slippage usually indicates insufficient air pressure (falling below the required 0.5 MPa) or a ruptured internal air bladder. Additionally, verify that your consumable cardboard or plastic tubes meet the exact dimensional tolerances required by your hardware.
A "squishy" or overly soft package is the direct mechanical consequence of insufficient winding density. This is primarily caused by low tension and an incorrect traverse ratio. First, recalibrate your settings so the material is pulled with enough force to compact the underlying layers tightly against the core. Next, adjust the traverse speed. Adjusting the gear ratio or inputting a steeper angle into the PLC will force the material to cross over itself more aggressively, locking the layers together to produce a dense, stable cylinder.
Guides, particularly ceramic eyelets and tension posts, are high-wear components that dictate the surface quality of your product. They should be visually and tactually inspected at least once a week. Replace them immediately if you detect any microscopic grooving, cracking, or surface roughness. Because synthetic turf fibers are extruded with specific profiles (such as C-shape or V-shape) to mimic natural grass, running this textured material over a grooved ceramic guide acts like sandpaper. Treat guides as vital consumables and replace them proactively.
For heavy, high-denier yarns (typically 8,000 to 15,000 Dtex) used in sports turf, the ideal winding speed generally falls between 250 to 400 meters per minute, depending on the polymer type and the machine's tension control capabilities. Pushing speeds beyond this without advanced active tension compensation often results in severe tension spikes and filament breakage. Always prioritize smooth, consistent winding over maximum speed to preserve the structural integrity of the yarn.
Bobbin weight and overall package density play a massive role downstream. If a bobbin is wound too loosely (squishy) or unevenly, the yarn will slough off during the high-speed twisting phase, causing tangles and machine jams. Furthermore, significant weight variations between bobbins can lead to uneven tension during multi-ply twisting, resulting in a defective, unbalanced final yarn that will not stand upright when tufted into the turf backing. Consistency in bobbin weight and density is non-negotiable.
